Identification of potential targets for nicotine

We systematically identified potential targets of nicotine by integrating multiple authoritative drug target prediction databases: 1) SwissTargetPrediction database with species set to ‘Homo sapiens’ and predicted targets with probability values ≥0.1; 2) STITCH compound-protein interaction database using a confidence score threshold of ≥0.4; 3) DGIdb drug-gene interaction database to collect reported nicotine interaction targets; and 4) Comparative Toxicogenomics Database screened for interaction targets supported by at least one peer-reviewed publication.

Transcriptomic differential expression analysis and biomarker screening

We analyzed the endometrial tissue transcriptomic dataset GSE165004 from the GEO database, comprising decidual tissue samples from 24 recurrent SA patients and 24 normal early pregnancy women. After quality control, we performed normalization and differential expression analysis using the limma package in R. Differentially expressed genes (DEGs) were screened using adjusted p<0.05. Subsequently, intersection analysis was performed between DEGs and the nicotine target gene set.

Functional enrichment and pathway analysis

Multi-dimensional functional annotation and pathway enrichment analyses were performed on the intersected gene set to elucidate the underlying molecular mechanisms. Gene Ontology (GO) analysis systematically examined gene functional hierarchies from three perspectives: biological process, molecular function, and cellular component. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis focused on revealing signal transduction networks and metabolic pathways involving these genes. All enrichment analyses were implemented using the clusterProfiler R package¹², with significance levels set at p<0.05 (FDR corrected).

Machine learning algorithms for key gene identification

To identify core genes with the highest discriminative power from high-dimensional gene lists, this study employed two complementary machine learning feature selection methods: LASSO regression and Support Vector Machine-Recursive Feature Elimination (SVM-RFE). LASSO regression analysis was implemented using the glmnet R package¹³, constructing an L1-regularized logistic regression model with group labels as response variables and intersection gene expression profiles as predictor variables. The optimal penalty parameter λ (lambda. min) was determined through 10-fold cross-validation, and genes corresponding to non-zero coefficients were retained as first-tier screening results. SVM-RFE analysis was performed using the e1071 and caret R packages¹⁴, constructing support vector machine classifiers and iteratively removing features with the smallest weights until the remaining feature set achieved minimal classification error. Finally, the intersection of genes from both methods was taken as the final core signature gene set to enhance the robustness and generalizability of the screening results.

Expression profiling and diagnostic evaluation of key genes

Expression level visualization and diagnostic efficacy analysis were performed on the screened core genes within the GSE165004 dataset. Box plots were generated using the ggplot2 package to intuitively display expression difference patterns of each gene between recurrent SA and NEP groups. Simultaneously, receiver operating characteristic (ROC) curves and their corresponding areas under the curve (AUC) were calculated for each core gene to quantitatively assess their diagnostic potential as biomarkers.

Immune infiltration analysis

The CIBERSORTx algorithm was employed to perform deconvolution analysis on gene expression profiles from GSE165004, estimating the relative abundance of 22 immune cell subsets¹⁵. The analysis used limma-normalized expression matrices as input data, with Leukocyte Gene Signature Matrix (LM22) selected as the reference signature matrix. Through Spearman rank correlation analysis, we systematically calculated correlation coefficients between core gene expression levels and the abundance of various immune cells, and visualized the gene-immune cell association network in heatmap format. Wilcoxon rank-sum tests were used to compare differences in immune cell composition between groups to reveal potential immune imbalance mechanisms.

MR analysis

To assess the potential causal association between identified key target genes and SA, we employed a two-sample Mendelian randomization (MR) design. The validity of this approach relies on three core assumptions: 1) the relevance assumption, requiring that the genetic instruments are strongly associated with the exposure; 2) the independence assumption, requiring that the instruments are not associated with confounders of the exposure-outcome relationship; and 3) the exclusion restriction assumption, requiring that the instruments influence the outcome only through the exposure, not via alternative pathways.

To satisfy the relevance assumption, instrumental variables (IVs) were selected from expression quantitative trait loci (eQTL) data at a genome-wide significance threshold (p<5×10^-8). Only single nucleotide polymorphisms (SNPs) with F-statistic >10 were retained, ensuring that the instruments were sufficiently strong and effectively minimizing weak instrument bias. When a selected IV was not present in the outcome data, it was excluded from the MR analysis. For the independence assumption, we obtained eQTL summary statistics from the IEU Open GWAS resource, which derives primarily from the eQTLGen consortium (n=31684 individuals)¹⁶, while outcome data for SA were drawn from the FinnGen R12 dataset (23167 cases and 199279 controls), an independent Finnish population cohort¹⁷ (Supplementary file Table 1). Both the exposure and outcome GWAS were derived from European-ancestry populations and are independent, with no sample overlap. Furthermore, linkage disequilibrium (LD) clumping was performed (r²<0.1, window size 10000 kb) to ensure that the selected SNPs were independent of one another. Target genes for which no eQTLs were available in the eQTLGen resource, or for which no instrumental variable passed the selection criteria, were excluded from causal estimation.

The primary causal effect was estimated using the inverse variance weighted (IVW) method. To thoroughly assess the exclusion restriction assumption, multiple supplementary analyses were implemented to detect and adjust for potential horizontal pleiotropy. Specifically, we applied the weighted median and MR-Egger regression methods, which are more robust to pleiotropy than the IVW approach under different scenarios. Heterogeneity among the IVs was evaluated with Cochran’s Q test, while the MR-Egger intercept test was used as a formal test of directional pleiotropy. In addition, the MR-PRESSO global test was employed to identify outlier SNPs that might violate the exclusion restriction. Leave-one-out analyses were further conducted to confirm that the overall causal estimates were not driven by any single variant.

Single-cell validation of core target gene expression

To validate the expression characteristics of the aforementioned core target genes in recurrent abortion at single-cell resolution, we analyzed the single-cell transcriptomic dataset GSE214607 from the GEO database, which encompassed decidual tissue samples from 3 SA patients and 5 control women. The original gene-cell expression matrix was generated using the 10x Genomics platform and processed using the Seurat package in R. Quality control was first performed on cells, and potential doublets were removed using DoubletFinder. After using LogNormalize, highly variable genes were selected and the Harmony algorithm was employed to correct for sample batch effects. Based on t-SNE dimensionality reduction clustering, cell type annotation was performed according to marker genes from reference literature. Subsequently, the core target genes identified in the previous study were mapped to various cell types, and their expression distribution characteristics were visualized through dot plots and feature plots. Wilcoxon rank-sum tests were applied to compare expression differences of target genes in each cell type between SA and control groups, with results displayed through violin plots.

Molecular docking validation

To predict the binding capacity between nicotine and core target proteins, this study employed the CB-Dock2 online server for molecular docking analysis. CB-Dock2 integrates the curvature-driven binding site identification algorithm with the AutoDock Vina docking engine, enabling efficient prediction of receptor protein binding cavities and ligand docking simulation¹⁸. Three-dimensional structures of core target proteins were obtained from the Protein Data Bank. For proteins lacking experimentally resolved structures, high-precision structural models predicted by AlphaFold2 were employed. The three-dimensional structure of nicotine was retrieved from the PubChem database (CID: 89594). Docking parameters were set to program defaults, binding energy scoring employed the Vina scoring function, and the highest affinity conformation and predicted binding free energy (kcal/mol) for each complex were systematically recorded.

Statistical analysis

All bioinformatics and statistical analyses were performed using R software (version 4.3.2). Differential expression analysis was conducted with the limma package, applying the Benjamini-Hochberg procedure for multiple testing correction (adjusted p<0.05). Diagnostic performance was evaluated by receiver operating characteristic (ROC) curves, with an area under the curve (AUC) >0.7 considered indicative of acceptable discriminatory ability. For immune infiltration comparisons, Wilcoxon rank-sum tests were used for between-group comparisons, and Spearman’s rank correlation was used for association analyses. MR analyses were performed using the TwoSampleMR (version 0.6.8) and MR-PRESSO (version 1.0) packages, the IVW method served as the primary estimator, with a p<0.05 considered statistically significant. Heterogeneity was evaluated with Cochran’s Q test, and horizontal pleiotropy was assessed using the MR-Egger intercept test; for both tests, p<0.05 was interpreted as evidence of significant heterogeneity or pleiotropy, respectively. Molecular docking was carried out using CB-Dock2, and binding energies ≤ -5.0 kcal/mol were considered indicative of significant binding affinity.

Network toxicology prediction of key targets in nicotine-induced SA

Integration of data from SwissTargetPrediction, STITCH, DGIdb, and CTD databases yielded 645 potential nicotine targets (Supplementary file Figure 1). Differential expression analysis of GEO datasets revealed 2451 DEGs, visualized through volcano plots and heatmaps (Supplementary file Figures 2 and 3). We identified 69 overlapping genes between nicotine targets and SA-related genes (Supplementary file Figure 4), which were used to construct a protein-protein interaction network (Supplementary file Figure 5).

GO enrichment analysis revealed that these targets were primarily involved in hormone response (glucocorticoid and steroid), apoptosis regulation, and mechanical stimulus response. Cellular components were enriched in outer membranes, membrane rafts, and synaptic structures, while molecular functions concentrated on ubiquitin ligase activity, phosphatase activity, and protein binding (Supplementary file Figure 6). KEGG pathway analysis demonstrated significant enrichment in viral infection pathways, cancer-related pathways, apoptotic pathways, and the PD-L1 pathway (Supplementary file Figure 7).

Machine learning identification of key diagnostic genes

Using the 69 candidate target genes, we employed complementary machine learning approaches for feature selection. LASSO regression identified 15 genes with non-zero coefficients (Supplementary file Figures 8 and 9), while SVM-RFE algorithm indicated an optimal feature number of 5 (Supplementary file Figure 10). Intersection analysis revealed five key genes: CTNNB1, FGF2, RAD50, TINAGL1, and VIM (Supplementary file Figure 11).

Expression analysis demonstrated significant differences between SA and control groups for all five genes: TINAGL1 was upregulated in SA, while CTNNB1, FGF2, RAD50, and VIM were downregulated (Supplementary file Figure 12). ROC curve analysis validated the diagnostic efficacy of all five genes, with AUC values ranging from 0.747 to 0.969 (Supplementary file Figure 13).

Immune infiltration analysis

The distribution of 22 immune cell types revealed distinct compositional patterns between groups (Supplementary file Figure 14), with activated mast cells showing no infiltration signal across all samples. Correlation analysis revealed complex intercellular interactions, such as the positive correlation between M2 macrophages and plasma cells and the associations among other immune subsets (Supplementary file Figure 15). The SA group exhibited significant alterations in regulatory T cells, γδ T cells, macrophages (M1 and M2), and dendritic cell proportions (Figure 1A).

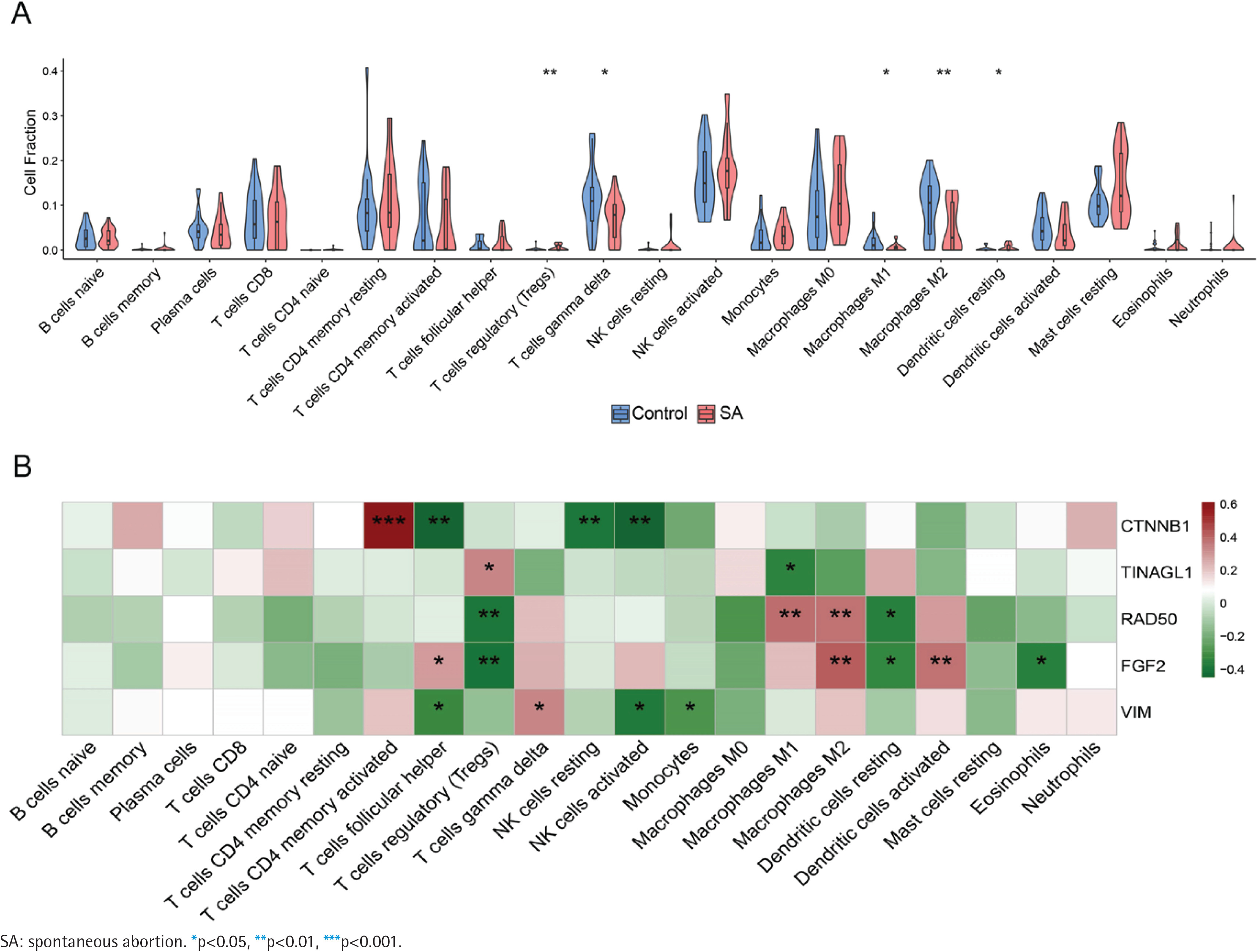

Figure 1

Immune infiltration analysis: A) Violin plots comparing the distributions of each immune-cell subset between control and SA samples; B) Spearman correlation heatmap between the infiltration levels of the immune-cell subsets and the five hub genes

Correlation analysis between key genes and immune cell infiltration showed that CTNNB1 positively correlated with activated memory CD4+ T cells while negatively correlating with follicular helper T cells and NK cells. RAD50 significantly correlated with regulatory T cells, macrophages, and dendritic cells. FGF2 positively correlated with M2 macrophages and activated dendritic cells but negatively with regulatory T cells. Both TINAGL1 and VIM were associated with specific T cell subsets and myeloid cells (Figure 1B).

MR analysis validates causal associations

Since no expression-associated signals for TINAGL1 were found in the eQTLGen database, we employed two-sample MR to evaluate causal associations between four potential target genes (CTNNB1, RAD50, FGF2, and VIM) and SA. The IVs are shown in Supplementary file Table 2, with the F-statistic ranging from 30.58 to 1140.08, indicating no evidence of weak instrument bias.

The MR analysis results showed significant causal associations between FGF2 (95% CI: 1.11–1.33, p=4.69×10^-5) and RAD50 (OR=1.08; 95% CI: 1.01– 1.15, p=0.019) and SA risk (Supplementary file: Table 3 and Figure 16). Sensitivity analyses further supported the robustness of these findings (MR-Egger intercept p>0.05) (Supplementary file Tables 3 and 4).

Single-cell transcriptome analysis validates cell-specific expression of core genes

After quality control and standardization, we obtained 48051 high-quality cells, including 20799 cells from the SA group and 27252 cells from the control group. Through t-SNE dimensionality reduction combined with cell type marker genes indicated by the data source references¹⁹, we identified 11 cell types consistent with those reported in the literature, including B cells, T cells, dendritic cells (DCs), decidual NK cells (dNKs), decidual macrophages (dM), monocytes (Mon), neutrophils, decidual stromal cells (DSCs), endothelial cells (Endo), epithelial cells (Epi), and extravillous trophoblasts (EVT).

Dot plot and feature plot analyses revealed distinct cell type-specific expression patterns of the five core genes (Supplementary file Figures 18 and 19). VIM showed high expression in stromal-derived and immune cells, particularly in DSCs, dM, and DCs. CTNNB1 was enriched in tissue barrier-related cells (Endo, DSCs, EVT) and specific immune subsets. TINAGL1 exhibited highly tissue-specific expression, primarily in EVT and Endo cells. FGF2 maintained low basal expression across most cell types, with high expression only in DSCs. RAD50 showed relatively uniform expression across all cell populations, with slight enrichment in EVT and DSCs.

Differential expression analysis revealed significant cell type-specific changes (Supplementary file Figure 20). TINAGL1 was significantly upregulated across multiple cell types (Epi, DSCs, dNK, dM, and EVT). CTNNB1 was significantly downregulated in EVT, Mon, dNK cells, and DSCs, but upregulated in Epi. RAD50 was significantly downregulated in DSCs, Mon, and Endo, but upregulated in EVT and Epi. FGF2 was significantly downregulated in DSCs, dM, EVT, and Mon, showing upregulation trends only in T cells. VIM was significantly upregulated across multiple cell types including Epi, dNK, dM, DCs, T cells, and neutrophils.

Molecular docking analysis

Crystal structures of four target proteins were obtained from the PDB: β-catenin (CTNNB1, ID: 1JDH), RAD50 (ID: 5GOX), FGF2 (ID: 1CVS), and VIM (ID: 3KLT). For TINAGL1, we utilized its AlphaFold structure (ID: AF-Q9GZM7-F1).

Nicotine formed stable ligand-protein complexes with all five target proteins (Supplementary file Figure 21), with binding free energies ranging from -5.0 to -6.9 kcal/mol, consistent with moderate to high-affinity small molecule-protein interactions. Notably, nicotine formed the most stable complex with cytoskeletal protein VIM (-6.9 kcal/mol).

Limitations

While the integration of network toxicology with multi-omics data provides novel insights into environmentally induced pregnancy loss mechanisms, several methodological limitations warrant consideration. These include: the necessity for experimental validation of predicted nicotine-protein interactions; limited representativeness due to restricted decidual tissue samples for single-cell sequencing; interpretive constraints of the MR analyses, which reflect cumulative rather than stage-specific genetic effects, and the use of data from predominantly European participants, potentially limiting the generalizability of the findings to other populations; the potential for residual confounding in the transcriptomic and immune infiltration analyses, as they are based on observational data; and the inherent limitations of bulk transcriptomics in capturing cell-specific alterations. These constraints highlight critical directions for future investigations.
